Kubernetes on Azure

Context

The purpose of this document is to describe how to create the necessary infrastructure to deploy Vectice on a Kubernetes cluster in Azure, followed by instructions to deploy the Vectice software

Understanding prerequisites

Infrastructure requirements

#	Requirement	Notes or Details
1	Security Groups	Port 443 (HTTPS) 3128 Outbound (pip install) SMTP Port (e.g 2525)
2	Kubernetes Cluster	v1.16+ deployed 2 nodes with Standard_B4ms
3	Azure Blob Storage Container	In the same region
4	Azure Database for PostgreSQL flexible server	13.x Cloud SQL instance

Other requirements

#	Requirement	Notes or Details
5	Domain Name	Example: https://vectice.my-company.com
6	SSL Certificate	Must be associated with the domain name above Self-signed certificates are not recommended
Deployment environment with the following tools:
7	Helm v3	Installation Guide
8	Kubectl	Installation Guide
9	Azure CLI	Installation Guide
11	Openssl	Installation Guide

2. How to provision the infrastructure

You have two ways to create the infrastructure necessary for running Vectice.

Provisioning via Terraform (with Terragrunt Wrapper)

• Expected Time: 40 minutes

• Steps:

  • Complete instructions, including the Terraform script, are found in the package your Vectice account team provided you. Contact [email protected] if you require assistance.

Provisioning via Azure portal

• Expected Time: 2 hours

• Steps:

  • PostgreSQL Instance creation, see Appendix 1: Creating the SQL Instance

  • Kubernetes cluster creation, see Appendix 2: Cluster Creation

  • Blob Storage Creation, see Appendix 3: Creating the Blob Storage container

3. How to deploy the Vectice application

The provisioning of Vectice on Kubernetes will happen in 5 steps:

• Step 1: Connect to the Cluster and Create the Vectice Namespace

• Step 2: Install the Cert Manager

• Step 3: Set up the Application Gateway on the cluster

• Step 4: Create Secrets for Ingress and Docker Image Retriever

• Step 5: Install the Vectice Stack

For any questions or assistance with deployment, please reach out to [email protected]

Step 1: Connect to the cluster and create the Vectice namespace

First, define the variables for the next steps and retrieve connections from your deployment machine. Below, sample values are provided between brackets:

AZURE_SUBSCRIPTION=<080kkb88-bf7d-44d-b46e-3302454g5r>
CLUSTER_NAME=<vectice-cluster>
RESOURCE_GROUP=<my-resource_group>
az account set --subscription $AZURE_SUBSCRIPTION
az aks get-credentials --resource-group $RESOURCE_GROUP --name $CLUSTER_NAME
CONTEXT=`kubectl config get-contexts | grep '*' |  grep '*' | awk '{print $2}'`

The expected output should look like this:

Merged "vectice-cluster" as current context in /home/wsl/.kube/config

Next, test the connection:

kubectl --context $CONTEXT get namespaces

The expected output should look like this:

NAME              STATUS   AGE
default           Active   3h54m
kube-node-lease   Active   3h54m
kube-public       Active   3h54m
kube-system       Active   3h54m

Finally, create the Vectice namespace where applications will be deployed:

kubectl --context $CONTEXT create namespace vectice

Step 2: Install the Cert Manager

Next, install the cert-manager and cert-manager-csi-driver applications on the cluster.

Cert-manager is used to implement SSL for internal communication between Vectice pods, Cert-manager-csi-driver will attach a csi volume containing the certificates to the Vectice pods

helm --kube-context $CONTEXT repo add jetstack https://charts.jetstack.io
helm --kube-context $CONTEXT repo update
helm --kube-context $CONTEXT install cert-manager jetstack/cert-manager -n cert-manager --create-namespace --set crds.enabled=true
helm --kube-context $CONTEXT install cert-manager-csi-driver jetstack/cert-manager-csi-driver --create-namespace -n cert-manager

Next, generate a custom Certificate Authority and create its associated secret:

openssl req -x509 -nodes -newkey rsa:4096 -days 3650 -keyout /tmp/ca.key -out /tmp/ca.crt -subj '/CN=vectice-internal-ca' -addext "keyUsage = keyCertSign"
kubectl --context $CONTEXT create secret tls vectice-internal-ca -n vectice --cert=/tmp/ca.crt --key=/tmp/ca.key

Step 3: Set up the Application Gateway on the cluster

You can reuse an existing application gateway through the Azure portal.

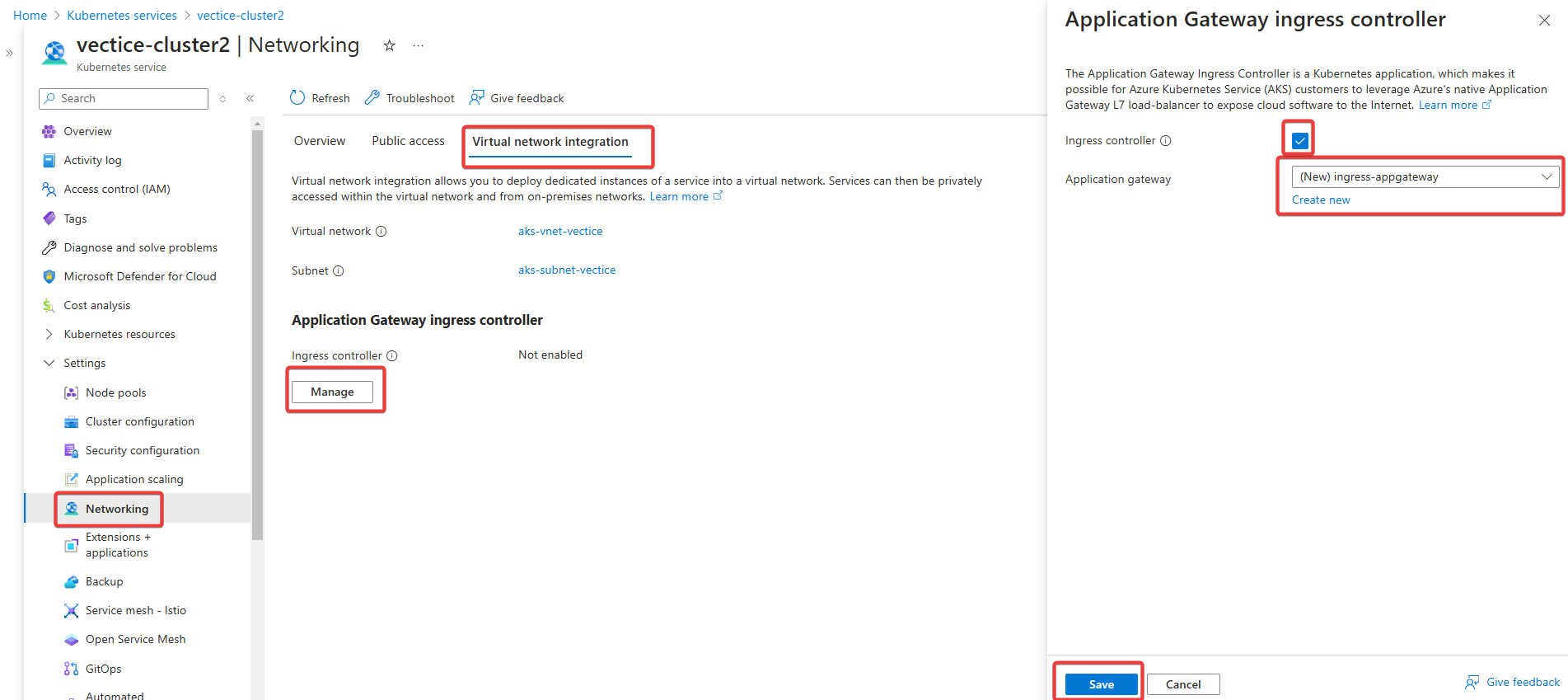

To enable the AGIC add-on, go to the Kubernetes services page and select your Cluster. Go to the Settings > Networking and Virtual Network Integration tab to find the application gateway ingress controller section. Click on the ManageCheck box next to Enable ingress controller, and Create a new Application Gateway or Select your existing one.

If you did not have an existing Application Gateway, the creation could be blocked because of a permission issue. The AG needs to create a subnet on the Vnet used by the AKS Cluster.

As the AG belongs to the Managed Resource Group of the AKS cluster, permission is needed to add on the Managed Identity of the AG.

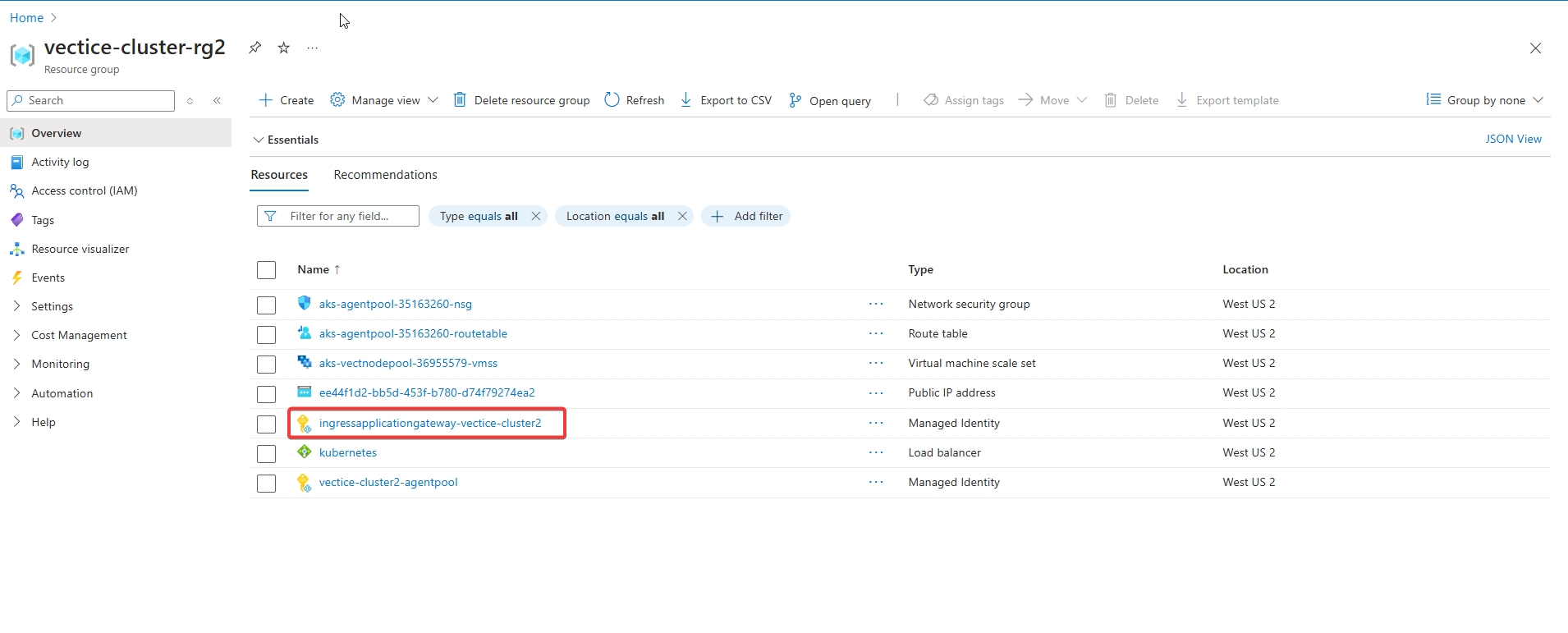

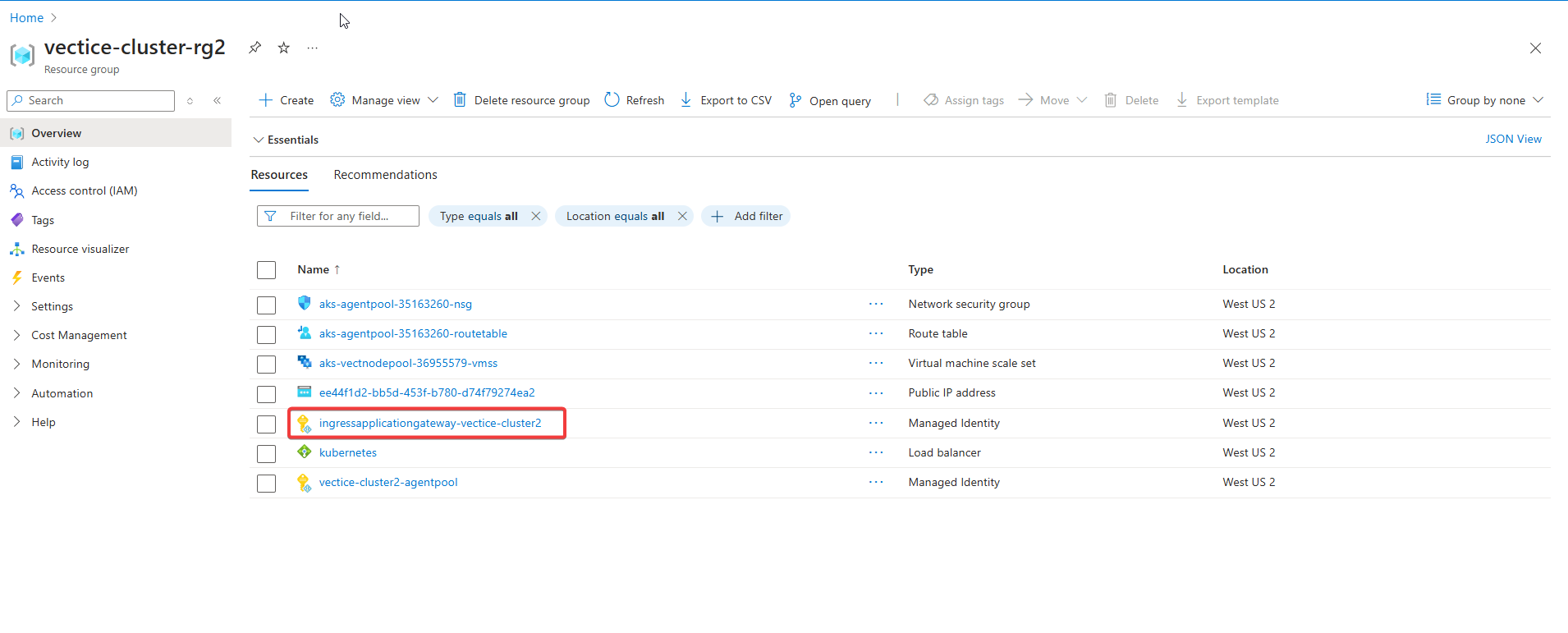

Navigate to the AKS managed Resource group created along with the cluster and Click on the managed Identity that contains the name of your AG (it might take a few minutes to appear).

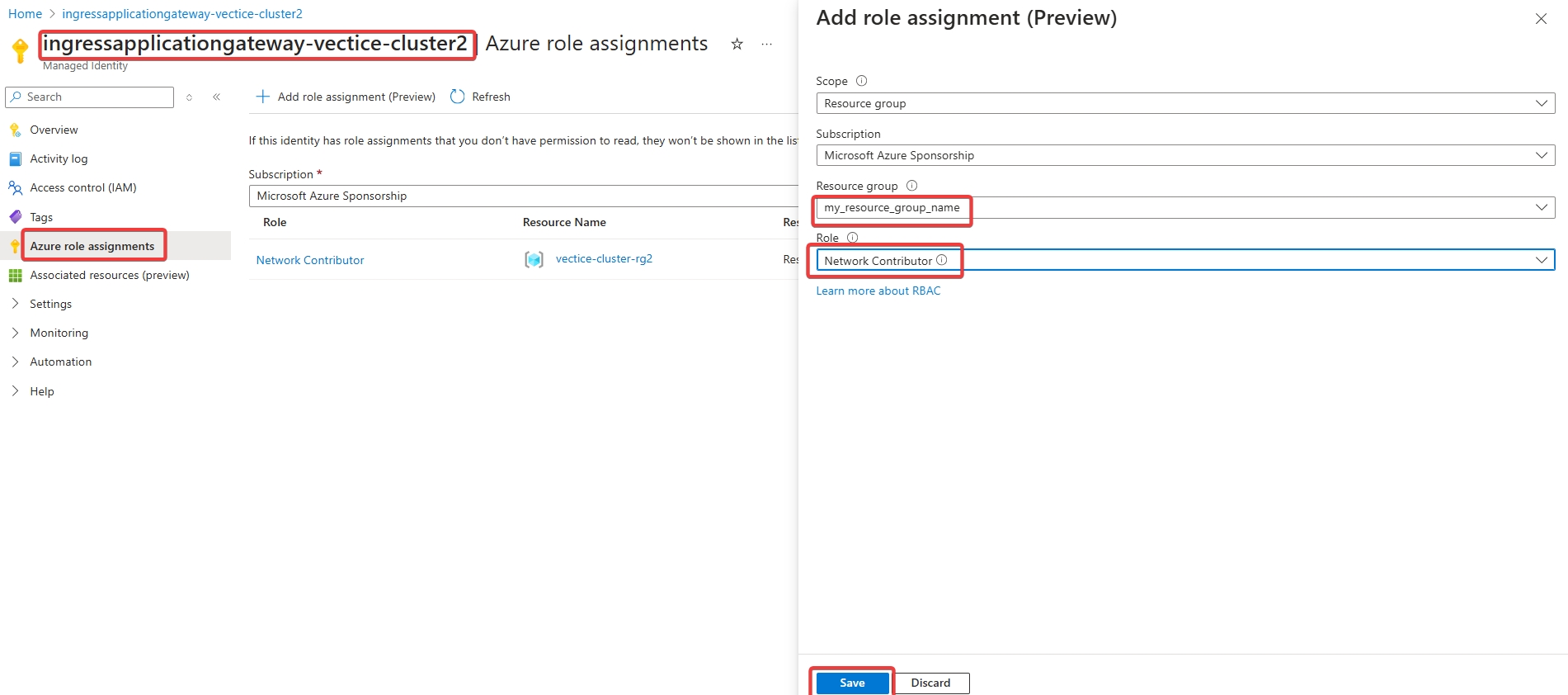

Navigate to the Azure role assignment menu, and add the role "Network Contributor" to the general resource group you use for the resources (not the AKS managed resource group).

Add root-certificate to the application gateway

Once the application gateway is created, add the root certificate to the application gateway. Below, sample values are provided between brackets.

KUBE_RESSOURCE_GROUP=<kubernetes resource group>
az network application-gateway root-cert create --cert-file vectice-cluster-ca.crt --gateway-name ingress-appgateway -n vectice-internal-ca --resource-group $KUBE_RESSOURCE_GROUP

Step 4: Create Secrets for Ingress and Docker Image Retriever

First, create a self-signed certificate using the following command, replacing the item highlighted with your own Common Name (CN). Below, sample values are provided between brackets.

CNVALUE=<vectice.my-company.com>
openssl req -x509 -nodes -newkey rsa:2048 -days 3650 -keyout /tmp/vectice-cert.key -out /tmp/vectice-cert.crt -subj "/CN=$CNVALUE"

Then, use the command below to install your certificates in the cluster

kubectl --context $CONTEXT create secret tls vectice-private-https -n vectice --cert=/tmp/vectice-cert.crt --key=/tmp/vectice-cert.key

To deploy the software, you can retrieve the necessary Docker images directly from the Vectice Registry. Alternatively, if you prefer, we can provide the images via an alternative delivery method that would be defined together. If your Kubernetes cluster is configured to pull images directly from the Vectice Registry, navigate to the location of the “vectice-image-puller.json” file. This is found in the package your Vectice account team provided you. Contact [email protected] if you require assistance. Use this file to create the secret that will be used to pull the docker images from the Vectice GAR registry.

kubectl --context $CONTEXT create secret docker-registry vectice-gar-secrets -n vectice \
--docker-server=https://us-docker.pkg.dev \
--docker-username=_json_key \
--docker-password="$(cat vectice-image-puller.json)" \
--docker-email=$(cat vectice-image-puller.json | grep "client_email" | cut -d '"' -f 4)

Step 5: Install the Vectice Stack

From the package your account team provided, untar helm vectice chart and create myvalues.yml from values.yml file. Below, sample values are provided between brackets.

Please refer to the configuration page and comments inside the file myvalues.yaml to customize values.

VERSION=<241.1.0>
tar -xvf vectice-$VERSION.tgz
cd vectice-$VERSION
cp values.yaml myvalues.yaml

Next, fill in the values in myvalues.yaml according to your environment deployment, and deploy Vectice global objects using Helm

cd ..
helm --kube-context $CONTEXT upgrade --install vectice vectice -f vectice/myvalues.yaml -n vectice --create-namespace --wait

Once this is done, retrieve the Vectice ingress IP. Note: this might take up to 5 minutes to appear

kubectl --context $CONTEXT get ingress vectice -n vectice

The expected output should look like this. Below are example values:

NAME      CLASS                      HOSTS                    ADDRESS   PORTS     AGE
vectice   azure-application-gateway  vectice.my-company.com   2.3.4.5   80, 443   1d

Finally, add the A record as a new entry in your DNS resolver.

Learn more about A DNS records.

In this example, the A record would look like below:

DOMAIN             RECORD TYPE     NAME        CONTENT
my-company.com     A               vectice     2.3.4.5
